Grounding with Google Maps

Grounding with Google Maps connects a Gemini model to geospatial data from Google Maps so that you can build location-aware functionality into your apps.

Grounding with Google Maps has the following benefits:

  • Increase factual accuracy: Reduce model hallucinations by basing responses on Google's database of over 250 million real-world places and businesses.
  • Access real-time information: Answer questions using live data, such as current business hours and the real-time status of EV charging stations.
  • Provide visual context: Build user trust by integrating interactive map widgets, photos, and Street View directly alongside the model's location-based claims.

Supported models

  • gemini-3.1-pro-preview
  • gemini-3-flash-preview
  • gemini-3.1-flash-lite
  • gemini-2.5-pro
  • gemini-2.5-flash
  • gemini-2.5-flash-lite

Supported languages

See supported languages for Gemini models.

Ground the model with Google Maps

Click your Gemini API provider to view provider-specific content and code on this page.

When you create the GenerativeModel instance, provide GoogleMaps as a tool that the model can use to generate its response.

Swift


import FirebaseAILogic

// Initialize the Gemini Developer API backend service
let ai = FirebaseAI.firebaseAI(backend: .googleAI())

// Example: Coordinates for New York City
let latAndLong = CLLocationCoordinate2D(latitude: 40.7128, longitude: -74.0060)

// (Optional) Define a RetrievalConfig to configure the Grounding with Google Maps tool.
// You can optionally provide a location's coordinates and/or a language code
// for more relevant and personalized Google Maps results.
let retrievalConfig = RetrievalConfig(
    location: latAndLong,
    // Example: Language code for English (US)
    languageCode: "en_US"
)

// Wrap the RetrievalConfig inside a ToolConfig.
let toolConfig = ToolConfig(retrievalConfig: retrievalConfig)

// Create a `GenerativeModel` instance with a model that supports your use case.
let model = ai.generativeModel(
    modelName: "GEMINI_MODEL_NAME",
    // Provide Google Maps as a tool that the model can use to generate its response.
    tools: [Tool.googleMaps()],
    // Add the configuration for the Grounding with Google Maps tool
    // (if this optional config was defined above).
    toolConfig: toolConfig
)

let response = try await model.generateContent("restaurants near me?")
print(response.text ?? "No text in response.")

// Make sure to comply with the "Grounding with Google Maps" usage requirements,
// which includes how you meet service usage requirements

Kotlin


// (Optional) Define a RetrievalConfig to configure the Grounding with Google Maps tool.
// You can optionally provide a location's coordinates and/or a language code
// for more relevant and personalized Google Maps results.
val retrievalConfig = RetrievalConfig(
    // Example: Coordinates for New York City
    latLng = LatLng(latitude = 40.7128, longitude = -74.0060),
    // Example: Language code for English (US)
    languageCode = "en_US"
)

// Wrap the RetrievalConfig inside a ToolConfig.
val toolConfig = ToolConfig(
    retrievalConfig = retrievalConfig
)

// Initialize the Gemini Developer API backend service
// Create a `GenerativeModel` instance with a model that supports your use case.
val model = Firebase.ai(backend = GenerativeBackend.googleAI()).generativeModel(
    modelName = "GEMINI_MODEL_NAME",
    // Add the configuration for the Grounding with Google Maps tool
    // (if this optional config was defined above).
    toolConfig = toolConfig,
    // Provide Google Maps as a tool that the model can use to generate its response.
    tools = listOf(Tool.googleMaps())
)

val response = model.generateContent("restaurants near me?")
print(response.text)

// Make sure to comply with the "Grounding with Google Maps" usage requirements,
// which includes how you meet service usage requirements

Java


// (Optional) Define a ToolConfig to configure the Grounding with Google Maps tool.
// You can optionally provide a location's coordinates and/or a language code
// for more relevant and personalized Google Maps results.
ToolConfig toolConfig = new ToolConfig(
    null,
    new RetrievalConfig(
        // Example: Coordinates for New York City
        new LatLng(40.7128, -74.0060),
        // Example: Language code for English (US)
       "en_US"
    )
);

// Initialize the Gemini Developer API backend service.
// Create a `GenerativeModel` instance with a model that supports your use case.
GenerativeModel ai = FirebaseAI.getInstance(GenerativeBackend.googleAI())
                .generativeModel("GEMINI_MODEL_NAME",
                        null,
                        null,
                        // Provide Google Maps as a tool that the model can use to generate its response.
                        List.of(Tool.googleMaps()),
                        // Add the configuration for the Grounding with Google Maps tool
                        // (if this optional config was defined above).
                        toolConfig);

// Use the GenerativeModelFutures Java compatibility layer which offers
// support for ListenableFuture and Publisher APIs.
GenerativeModelFutures model = GenerativeModelFutures.from(ai);

ListenableFuture response = model.generateContent("restaurants near me?");
  Futures.addCallback(response, new FutureCallback() {
      @Override
      public void onSuccess(GenerateContentResponse result) {
          String resultText = result.getText();
          System.out.println(resultText);
      }

      @Override
      public void onFailure(Throwable t) {
          t.printStackTrace();
      }
  }, executor);

// Make sure to comply with the "Grounding with Google Maps" usage requirements,
// which includes how you meet service usage requirements

Web


import { initializeApp } from "firebase/app";
import { getAI, getGenerativeModel, GoogleAIBackend } from "firebase/ai";

// TODO(developer) Replace the following with your app's Firebase configuration
// See: https://firebase.google.com/docs/web/learn-more#config-object
const firebaseConfig = {
  // ...
};

// Initialize FirebaseApp
const firebaseApp = initializeApp(firebaseConfig);

// Initialize the Gemini Developer API backend service
const ai = getAI(firebaseApp, { backend: new GoogleAIBackend() });

// (Optional) Define a toolConfig to configure the Grounding with Google Maps tool.
// You can optionally provide a location's coordinates and/or a language code
// for more relevant and personalized Google Maps results.
const toolConfig = {
  retrievalConfig: {
    // Example: Coordinates for New York City
    latLng: {
      latitude: 40.7128,
      longitude: -74.0060
    },
    // Example: Language code for English (US)
    languageCode: 'en-US'
  }
};

// Create a `GenerativeModel` instance with a model that supports your use case
const model = getGenerativeModel(
  ai,
  {
    model: "GEMINI_MODEL_NAME",
    // Provide Google Maps as a tool that the model can use to generate its response.
    // (Optional) Set `enableWidget` to control whether the response contains a `googleMapsWidgetContextToken`.
    tools: [ { googleMaps: { enableWidget: true } } ],
    // Add the configuration for the Grounding with Google Maps tool
    // (if this optional config was defined above).
    toolConfig
  }
);

const result = await model.generateContent("restaurants near me?");

console.log(result.response.text());

// Make sure to comply with the "Grounding with Google Maps" usage requirements,
// which includes how you meet service usage requirements

Dart


import 'package:firebase_core/firebase_core.dart';
import 'package:firebase_ai/firebase_ai.dart';
import 'firebase_options.dart';

// Initialize FirebaseApp.
await Firebase.initializeApp(
  options: DefaultFirebaseOptions.currentPlatform,
);

// (Optional) Define a ToolConfig to configure the Grounding with Google Maps tool.
// You can optionally provide a location's coordinates and/or a language code
// for more relevant and personalized Google Maps results.
final toolConfig = ToolConfig(
  retrievalConfig: RetrievalConfig(
    // Example: Coordinates for New York City
    latLng: LatLng(latitude: 40.712728, longitude: -74.006015),
    // Example: Language code for English (US)
    languageCode: 'en',
  ),
);

// Initialize the Gemini Developer API backend service
// Create a `GenerativeModel` instance with a model that supports your use case.
final model = FirebaseAI.googleAI().generativeModel(
  model: 'GEMINI_MODEL_NAME',
  // Provide Google Maps as a tool that the model can use to generate its response.
  tools: [
    Tool.googleMaps(),
  ],
  // Add the configuration for the Grounding with Google Maps tool
  // (if this optional config was defined above).
  toolConfig: toolConfig,
);

final response = await model.generateContent([Content.text("restaurants near me?")]);
print(response.text);

// Make sure to comply with the "Grounding with Google Maps" usage requirements,
// which includes how you meet service usage requirements

Unity


using Firebase;
using Firebase.AI;

// Initialize the Gemini Developer API backend service
var ai = FirebaseAI.GetInstance(FirebaseAI.Backend.GoogleAI());

// Example: Coordinates for New York City
var latLng = new LatLng(40.7128, -74.0060);

// (Optional) Define a RetrievalConfig to configure the Grounding with Google Maps tool.
// You can optionally provide a location's coordinates and/or a language code
// for more relevant and personalized Google Maps results.
var retrievalConfig = new RetrievalConfig(latLng, languageCode: "en");

// Wrap the RetrievalConfig inside a ToolConfig.
var toolConfig = new ToolConfig(retrievalConfig: retrievalConfig);

// Create a `GenerativeModel` instance with a model that supports your use case
var model = ai.GetGenerativeModel(
  modelName: "GEMINI_MODEL_NAME",
  // Provide Google Maps as a tool that the model can use to generate its response.
  tools: new[] { new Tool(new GoogleMaps()) },
  // Add the configuration for the Grounding with Google Maps tool
  // (if this optional config was defined above).
  toolConfig: toolConfig
);

var response = await model.GenerateContentAsync("restaurants near me?");
UnityEngine.Debug.Log(response.Text ?? "No text in response.");

// Make sure to comply with the "Grounding with Google Maps" usage requirements,
// which includes how you meet service usage requirements

Learn how to choose a model appropriate for your use case and app.

For ideal results, use a temperature of 1.0 (which is the default for all Gemini 2.5 and later models). Learn how to set temperature in the model's configuration.

Best practices and tips to improve results

This section describes some general best practices for using Grounding with Google Maps, as well as how to take advantage of place properties to improve results.

General best practices

  • Only provide the tool when needed: To optimize performance and cost, provide the model with access to the Grounding with Google Maps tool only when the use case has a clear geographical context.

  • Provide user location: For the most relevant and personalized responses (and when the user's location is known), include the user's location (using latitude and longitude via latLng) in the Grounding with Google Maps tool configuration.

  • Inform end users: Clearly inform your end users that Google Maps data is being used to answer their queries. Providing end users with the sources from Google Maps is a service usage requirement for the Grounding with Google Maps tool.

  • (Web SDK only) Render the Google Maps contextual widget: The contextual widget is rendered using the context token, googleMapsWidgetContextToken, which is returned in the Gemini API response and can be used to render visual content from Google Maps. For more information on the contextual widget, see Grounding with Google Maps widget in the Google Maps documentation.

Use place properties in prompts

This section lists place properties that are used to describe locations and used by Grounding with Google Maps to generate responses. These properties are used to determine the types of questions that Grounding with Google Maps can answer.

Sample place properties

This list provides an alphabetized sampling of properties about places that can be used by your model to generate responses.

  • Address
  • Curbside pickup
  • Debit card
  • Distance
  • Free parking lot
  • Live music
  • Menu for children
  • Opening hours
  • Payment options (such as cash or credit card)
  • Place answer
  • Pet friendly
  • Serves beer
  • Serves vegetarian food
  • Wheelchair accessible
  • Wifi

Place answers are a response from Grounding with Google Maps based on information derived from user reviews.

Example prompts that use place properties

The following examples use place properties in prompts about different types of places. Grounding with Google Maps uses the properties to understand your intent and then provides relevant answers based on the data associated with places in Google Maps.

  • Plan a family dinner: Determine if a restaurant is suitable for a family and if the restaurant offers a convenient service.

    • Example prompt: Is "The Italian Place" good for children, and do they offer takeout? What is their rating?

  • Check accessibility for a friend: Determine if the location meets specific accessibility needs.

    • Example prompt: I need a restaurant that has a wheelchair accessible entrance.

  • Find a location for a late-night snack: Find an open establishment serving a specific meal during a particular time.

    • Example prompt: Is "Burger Joint" open now? Do they serve dinner? What are their opening hours for Friday?

  • Meet a client for coffee: Assess the suitability of a cafe for a business meeting based on amenities, offerings, and payment options.

    • Example prompt: Does "Cafe Central" have Wifi? Do they serve coffee? What is their price level, and do they accept credit cards?

Note that information in the Google Maps Grounded Results might differ from actual conditions of the road.

How Grounding with Google Maps works

When you provide the model with the GoogleMaps tool, the model handles the entire workflow of searching, processing, and citing information automatically.

Here's the workflow of the model:

  1. Receives prompt: Your app sends a prompt to the Gemini model with the GoogleMaps tool enabled.

  2. Analyzes prompt: The model analyzes the prompt and determines if Google Maps can improve its response, for example, if the prompt contains geographical context (like "coffee shops near me," "museums in San Francisco").

  3. Invokes the tool: The model, recognizing the geographical intent, invokes the Grounding with Google Maps tool.

  4. Sends queries to Google Maps: The Grounding with Google Maps service queries Google Maps for relevant information (for example, places, reviews, photos, addresses, opening hours).

    You can optionally include latitude and longitude in the tool's config (or even just in the prompt directly) for more relevant and personalized Google Maps results. The tool is a textual search tool and behaves similarly to searching on Google Maps, in that local queries ("near me") will use the coordinates, while specific or non-local queries are unlikely to be influenced by the explicit location.

  5. Processes the Google Maps results: The model processes the Google Maps results and formulates a response to the original prompt.

  6. Returns a Google Maps Grounded Result: The model returns a final, user-friendly response that is grounded in the Google Maps results. This response includes:

    • The model's text answer.
    • A groundingMetadata object with the Google Maps results and sources.
    • (Web SDK only) Optionally a googleMapsWidgetContextToken that lets you render a contextual Google Maps widget in your app for visual interaction. For more information on the contextual widget, see Grounding with Google Maps widget in the Google Maps documentation.

Note that providing Google Maps as a tool to the model does not require the model to always use the Google Maps tool to generate its response. In these cases, the response won't contain a groundingMetadata object and thus it's not a Google Maps Grounded Result.

Understand the grounded result

If the model grounds its response in Google Maps results, then the response includes a groundingMetadata object that contains structured data that's essential for verifying claims and building a rich source experience in your application.

The groundingMetadata object in a Google Maps Grounded Result contains the following information:

  • groundingChunks: An array of objects containing the maps sources (uri, placeId, and title).
  • groundingSupports: An array of chunks to connect model response text to the sources in groundingChunks. Each chunk links a text segment (defined by startIndex and endIndex) to one or more groundingChunkIndices. This field helps you build inline source links. Learn how to meet service usage requirements later on this page.
  • (Web SDK only) googleMapsWidgetContextToken: A text token that can be used to render a contextual Places widget. This field is only returned when using the Web SDK and if you've set the enableWidget parameter to true.

Here's an example response that includes a groundingMetadata object:

{
  "candidates": [
    {
      "content": {
        "parts": [
          {
            "text": "CanteenM is an American restaurant with..."
          }
        ],
        "role": "model"
      },
      "groundingMetadata": {
        "groundingChunks": [
          {
            "maps": {
              "uri": "https://maps.google.com/?cid=13100894621228039586",
              "title": "Heaven on 7th Marketplace",
              "placeId": "places/ChIJ0-zA1vBZwokRon0fGj-6z7U"
            }
          }
        ],
        "groundingSupports": [
          {
            "segment": {
              "startIndex": 0,
              "endIndex": 79,
              "text": "CanteenM is an American restaurant with a 4.6-star rating and is open 24 hours."
            },
            "groundingChunkIndices": [0]
          }
        ],
        "googleMapsWidgetContextToken": "widgetcontent/..."
      }
    }
  ]
}

Service usage requirements

This section describes the service usage requirements for Grounding with Google Maps for your chosen Gemini API provider: Gemini Developer API or Vertex AI Gemini API (see Service Terms section within the Service Specific Terms).

Inform users of Google Maps sources

With each Google Maps Grounded Result, you'll receive sources in groundingChunks that support each response. The following metadata is also returned:

  • source uri
  • title
  • ID

In your app, when presenting results from Grounding with Google Maps, you must specify the associated Google Maps sources, and inform your users of the following:

  • The Google Maps sources must immediately follow the generated content that the sources support. This generated content is also referred to as Google Maps Grounded Result.

  • The Google Maps sources must be viewable within one user interaction.

Here's how to get values for displaying sources from the Google Maps Grounded Result:

Swift

// ...

// Get the model's response
let text = response.text

// Get the grounding metadata
if let candidate = response.candidates.first,
   let groundingMetadata = candidate.groundingMetadata {

  // Get sources
  let groundingChunks = groundingMetadata.groundingChunks
  for chunk in groundingChunks {
    if let maps = chunk.maps {
      let title = maps.title  // for example, "Heaven on 7th Marketplace"
      let url = maps.url  // for example, "https://maps.google.com/?cid=13100894621228039586"
      let placeId = maps.placeId  // for example, "places/ChIJ0-zA1vBZwokRon0fGj-6z7U"
      // TODO(developer): show source in the UI
    }
  }
}

Kotlin

// ...

// Get the model's response
val text = response.text

// Get the grounding metadata
val groundingMetadata = response.candidates.firstOrNull()?.groundingMetadata

// Get sources
val groundingChunks = groundingMetadata?.groundingChunks
groundingChunks?.let { chunks ->
  for (chunk in chunks) {
    val title = chunk.maps?.title  // for example, "Heaven on 7th Marketplace"
    val uri = chunk.maps?.uri  // for example, "https://maps.google.com/?cid=13100894621228039586"
    val placeId = chunk.maps?.placeId  // for example, "places/ChIJ0-zA1vBZwokRon0fGj-6z7U"
    // TODO(developer): show source in the UI
  }
}

Java

// ...

Futures.addCallback(response, new FutureCallback() {
  @Override
  public void onSuccess(GenerateContentResponse result) {
    // Get the model's response
    String text = result.getText();

    // Get the grounding metadata
    GroundingMetadata groundingMetadata =
        result.getCandidates()[0].getGroundingMetadata();

    if (groundingMetadata != null) {
      // Get sources
      List chunks = groundingMetadata.getGroundingChunks();
      if (chunks != null) {
        for(GroundingChunk chunk : chunks) {
          GoogleMapsGroundingChunk maps = chunk.getMaps();
          if (maps != null) {
            String title = maps.getTitle();  // for example, "Heaven on 7th Marketplace"
            String uri = maps.getUri();  // for example, "https://maps.google.com/?cid=13100894621228039586"
            String placeId = maps.getPlaceId();  // for example, "places/ChIJ0-zA1vBZwokRon0fGj-6z7U"
            // TODO(developer): show sources in the UI
          }
        }
      }
    }
  }

  @Override
  public void onFailure(Throwable t) {
    t.printStackTrace();
  }
}, executor);

Web

// ...

// Get the model's text response
const text = result.response.text();

// Get the grounding metadata
const groundingMetadata = result.response.candidates?.[0]?.groundingMetadata;

// Get sources
const groundingChunks = groundingMetadata?.groundingChunks;
if (groundingChunks) {
  for (const chunk of groundingChunks) {
    const title = chunk.maps?.title;  // for example, "Heaven on 7th Marketplace"
    const uri = chunk.maps?.uri;  // for example, "https://maps.google.com/?cid=13100894621228039586"
    const placeId = chunk.maps?.placeId;  // for example, "places/ChIJ0-zA1vBZwokRon0fGj-6z7U"
    // TODO(developer): show sources in the UI
  }
}

Dart

// ...

// Get the model's response
final text = response.text;

// Get the grounding metadata
final groundingMetadata = response.candidates.first.groundingMetadata;

// Get sources
final groundingChunks = groundingMetadata?.groundingChunks;
if (groundingChunks != null) {
  for (var chunk in groundingChunks) {
    final title = chunk.maps?.title;  // for example, "Heaven on 7th Marketplace"
    final uri = chunk.maps?.uri;  // for example, "https://maps.google.com/?cid=13100894621228039586"
    final placeId = chunk.maps?.placeId;  // for example, "places/ChIJ0-zA1vBZwokRon0fGj-6z7U"
    // TODO(developer): show sources in the UI
  }
}

Unity

// ...

// Get the model's response
var text = response.Text;

// Get the grounding metadata
var groundingMetadata = response.Candidates.First().GroundingMetadata;

// Get sources
if (groundingMetadata != null) {
  foreach(GroundingChunk chunk in groundingMetadata?.GroundingChunks) {
    if (chunk.Maps != null) {
      var title = chunk.Maps?.Title;  // for example, "Heaven on 7th Marketplace"
      var uri = chunk.Maps?.Uri;  // for example, "https://maps.google.com/?cid=13100894621228039586"
      var placeId = chunk.Maps?.PlaceId;  // for example, "places/ChIJ0-zA1vBZwokRon0fGj-6z7U"
      // TODO(developer): show sources in the UI
    }
  }
}

For each source in groundingChunks, a link preview must be generated following these requirements:

  • Attribute each source to Google Maps following the Google Maps text attribution guidelines.
  • Display the source title provided in the response.
  • Link to the source using the uri from the response.

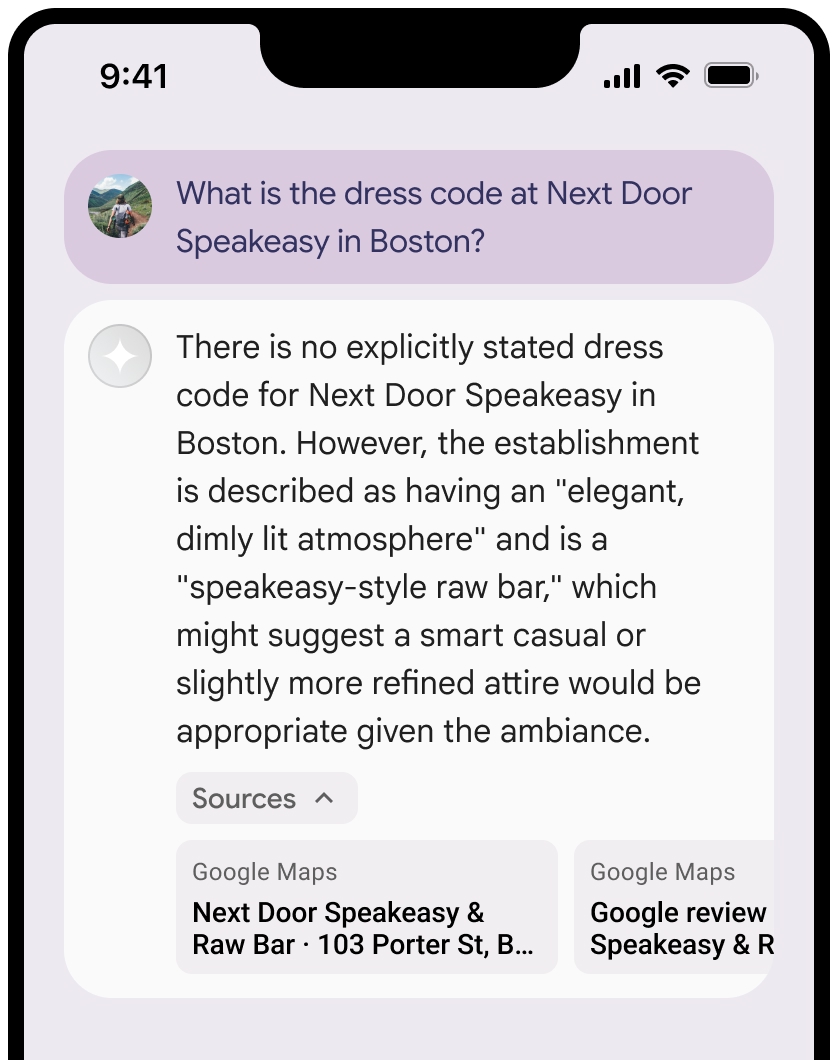

Prompt with response showing sources

You can collapse the view of the sources.

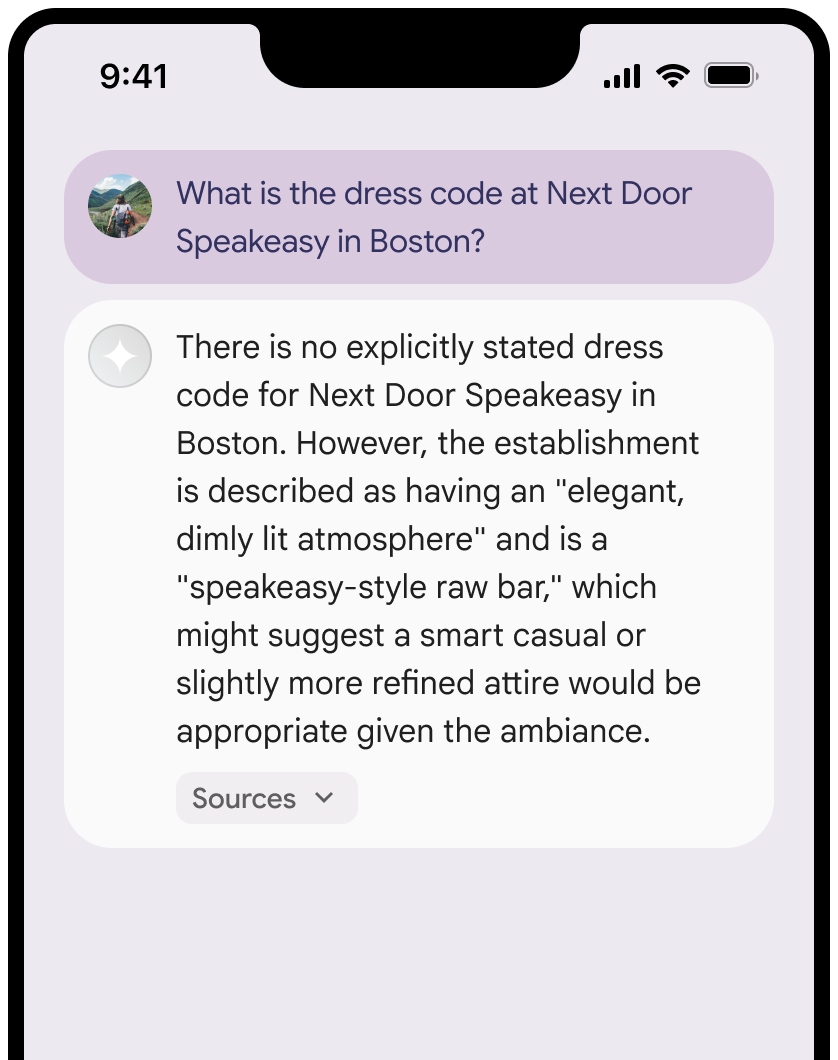

Prompt with response and sources collapsed

Optionally, you can enhance the link preview with additional content, such as:

  • A Google Maps favicon inserted before the Google Maps text attribution.
  • A photo from the source URL (og:image).

For more information about some of the Google Maps data providers and their license terms, see the Google Maps and Google Earth legal notices.

Google Maps text attribution guidelines

When you attribute sources to Google Maps within text, follow these guidelines:

  • Don't modify the text Google Maps in any way:

    • Don't change the capitalization of the text Google Maps.
    • Don't wrap the text Google Maps onto multiple lines.
    • Don't localize the text Google Maps into another language.
    • Prevent browsers from translating the text Google Maps by using the HTML attribute translate="no".

  • Style the text Google Maps as described in the following table:

    Property Style
    Font family Roboto. Loading the font is optional.
    Fallback font family Any sans serif body font already used in your product or "Sans-Serif" to invoke the default system font
    Font style Normal
    Font weight 400
    Font color White, black (#1F1F1F), or gray (#5E5E5E). Maintain accessible (4.5:1) contrast against the background.
    Font size Minimum font size: 12sp
    Maximum font size: 16sp
    To learn about sp, see Font size units on the Material Design website.
    Spacing Normal

Example CSS

The following CSS renders the text Google Maps with the appropriate typographic style and color on a white or light background.

@import url('https://fonts.googleapis.com/css2?family=Roboto&display=swap');

.GMP-attribution {
  font-family: Roboto, Sans-Serif;
  font-style: normal;
  font-weight: 400;
  font-size: 1rem;
  letter-spacing: normal;
  white-space: nowrap;
  color: #5e5e5e;
}

Caching of context token and place ID

The Google Maps Grounded Result may include context token and place ID. You might cache, store, and export the following response data:

  • (Web SDK only) googleMapsWidgetContextToken
  • placeId

The restrictions against caching in the Grounding with Google Maps Terms don't apply to this data.

Prohibited activity and territories

Grounding with Google Maps has additional restrictions for certain content and activities to maintain a safe and reliable platform. In addition to the usage restrictions in the Terms for your chosen Gemini API provider: Gemini Developer API or Vertex AI Gemini API (see Service Terms section within the Service Specific Terms).

  • You won't use Grounding with Google Maps for high risk activities including emergency response services.

  • You won't distribute or market your application that offers Grounding with Google Maps in a Prohibited Territory. For more information, see Google Maps Platform Prohibited Territories. The list of Prohibited Territories may be updated from time to time.

Grounded results and AI monitoring in the Firebase console

If you've enabled AI monitoring in the Firebase console, responses are stored in Cloud Logging. By default, this data has a 30-day retention period.

It's your responsibility to ensure that this retention period, or any custom period you set, fully aligns with your specific use case and any additional compliance requirements for your chosen Gemini API provider: Gemini Developer API or Vertex AI Gemini API (see Service Terms section within the Service Specific Terms). You may need to adjust the retention period in Cloud Logging to meet these requirements.

Pricing and rate limits

Grounding with Google Maps pricing is based on queries. A request is only counted towards the Google Maps quota when a prompt successfully returns at least one Google Maps Grounded Result (meaning the response contains at least one Google Maps source). If multiple queries are sent to Google Maps from a single request, it counts as one request towards the rate limit.

Make sure to review details about pricing, model availability, and limits for Grounding with Google Maps in your chosen Gemini API provider documentation: Gemini Developer API | Vertex AI Gemini API.
